POS & Kiosk Display Modules for 24/7 retail floors and self-service
Self-service kiosks, cashier terminals and shelf-edge displays built for 24/7 duty — 7"–15.6" touch modules, 1,000+ nits sunlight-readable options, IP65 front assemblies and 8.8" bar-type screens for queue and shelf systems.
A checkout screen that blinks once is a checkout line that stops
Retail floors run displays around the clock, and the failure mode that matters is not resolution — it is uptime. A kiosk panel must survive 8,760 hours a year of backlight burn, greasy fingertips and, at the storefront, direct sun. We build the POS and kiosk line around exactly those three enemies.
- 24/7 continuous operation — backlights rated 50K–70K hours, screened with a 48-hour burn-in before shipment.

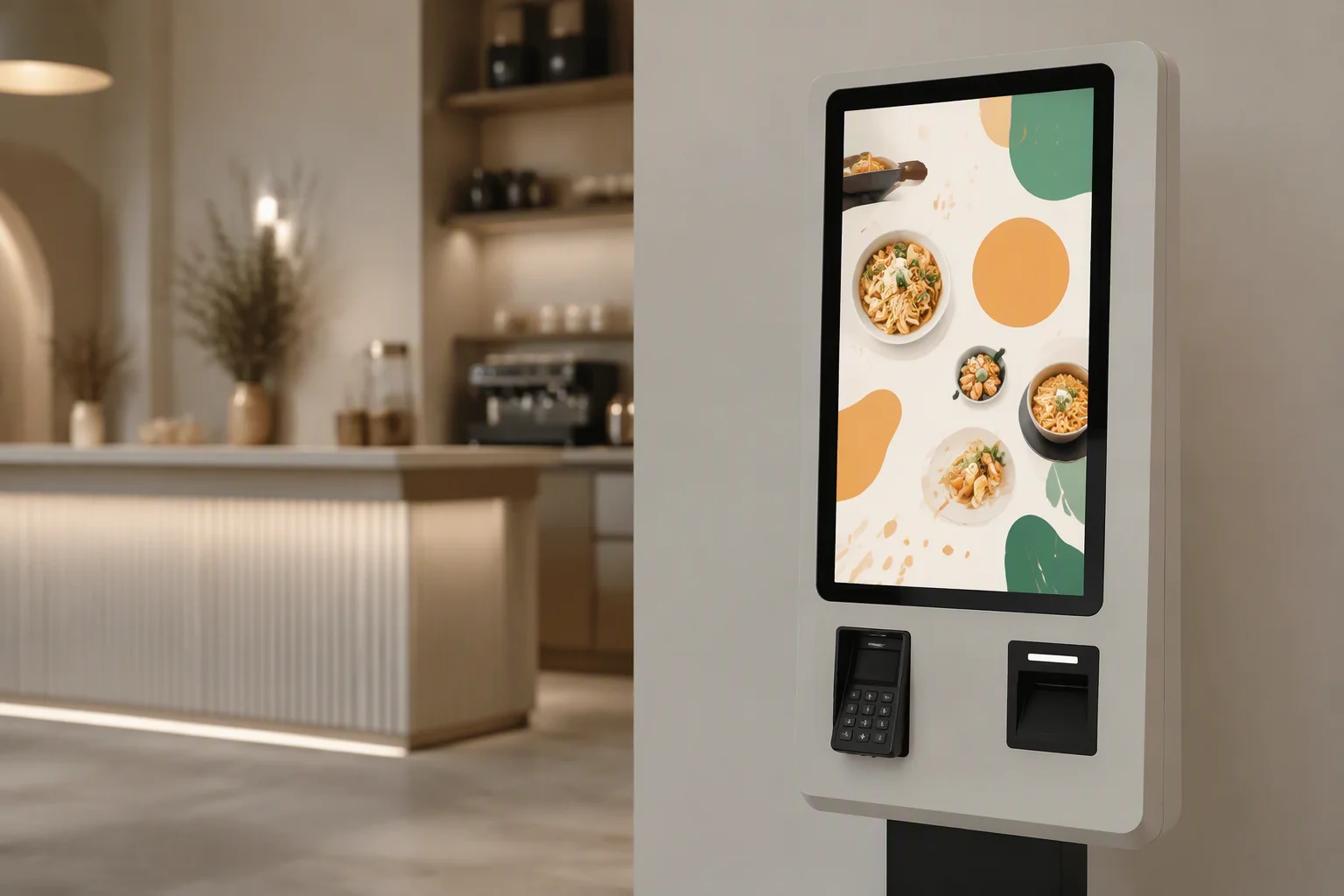

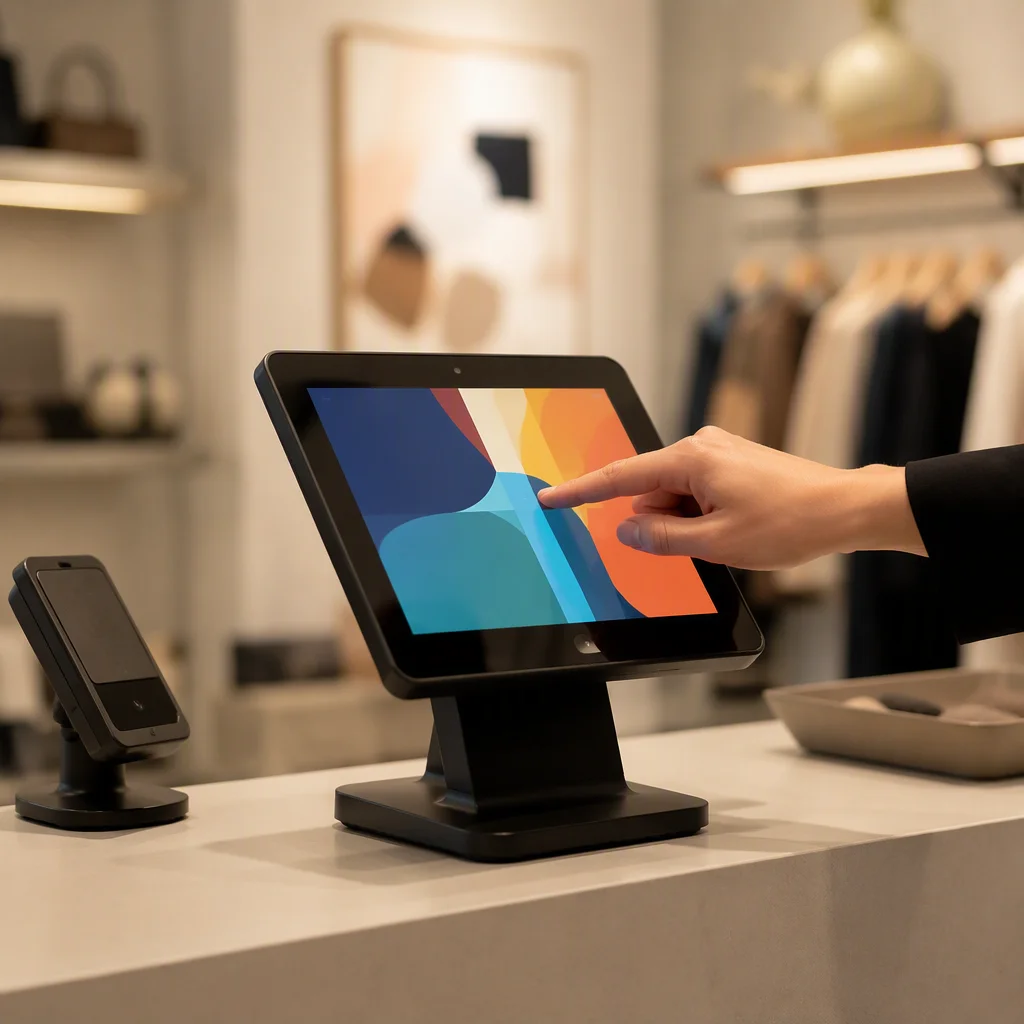

- 10.1" 1280×800 and 15.6" FHD — the mainstream formats for cashier terminals and ordering kiosks.
- 8.8" 1280×320 bar-type — slim shelf and queue displays that standard 4:3 panels cannot fill.
- 10-point PCAP with AG cover glass — survives oil, gloves and styluses on busy counters.
Where POS and kiosk displays fail — and how we answer
Eight failure modes we see in retail deployments, each paired with the response engineered into our touch modules. Every one is a measured gap with a numeric answer.
| Pain Point | The Cost | EMS-Display Response |
|---|---|---|
| 24/7 continuous duty | A panel rated for 8 h/day loses brightness within a year of round-the-clock operation | Backlight rated 50K–70K hours; 48 h burn-in screening before shipment |
| Sunlight at outdoor kiosks | A 300 nits panel is unreadable in noon sun; 1,000–1,500 nits is the outdoor threshold | 1,000–1,500 nits stacks with optical bonding and AR coating |
| Oily, gloved fingers | Resistive touch fails with oil and gloves; single-point input slows every transaction | 10-point PCAP with AG cover glass, glove-tolerant |
| Semi-outdoor brightness swings | A fixed 800 nits fails outdoors; 1,500 nits indoors is blinding and wasteful | Dual brightness grades 800–1,500 nits with light-sensor option |
| Fingerprints and glare | Smudged glass kills contrast on bright retail floors | AG anti-glare cover plus OCA full lamination |
| Shelf and queue formats | Standard 4:3 panels waste shelf-edge space and look wrong in a queue line | 8.8" 1280×320 bar-type, custom lengths up to 15.6" |
| Downtime cost at checkout | Every minute offline at a register is lost revenue; field repairs are expensive | 12–24 month warranty on 24/7 duty; spare-pool planning |
| Heat inside sealed cabinets | Kiosk enclosures have no airflow; backlight heat shortens component life | Aluminum-frame thermal design, -20~+70 °C operating |
The POS and kiosk line, specified to the digit
Standard retail-grade parameters with custom variants on demand. Quote these against your cabinet, your deployment site and your service plan.
| Parameter | Specification |
|---|---|
| Size range | 7"–15.6" standard; 8.8" bar-type |
| Resolution | 1280×800 (10.1"); 1920×1080 FHD (15.6"); 1280×320 (8.8" bar) |
| Brightness | 500 nits indoor; 1,000–1,500 nits outdoor with auto option |
| Touch | 10-point PCAP; AG cover glass; OCA full lamination |
| Backlight life | 50K–70K hours, 24/7 rated with 48 h burn-in screen |
| Interface | LVDS · eDP · MIPI · RGB |
| Protection | IP65 front assemblies for outdoor cabinets |
| Temperature | -20~+70 °C operating |
| Certifications | CE · FCC · RoHS · REACH |
| Warranty | 12–24 months on continuous duty |
| MOQ | 500 pcs; samples in 7–15 days |
| Lead time | Production 20–35 days, FOB Shenzhen |
What retail programs report back
Customer types and the numbers they measured — uptime, touch reliability and readability at the storefront.
Fifteen-point-six-inch FHD high-brightness modules with PCAP went into 3,000 kiosks in the first year. Not one touch return in twelve months of 24/7 operation.
Outdoor payment kiosks run our 10.1-inch 1,500 nits bonded stack in direct noon sun; readability held and the IP65 front survived a summer of sand and heat.
8.8-inch bar displays — 12,000 units across 200 stores — ran 18 months at 24/7 duty with a field-failure rate below 0.5%.
Send your kiosk or terminal spec — we will return an MTBF plan and a price.
Size, interface, touch type and annual volume. 10-point PCAP, 1,000+ nits outdoor options, 12–24 month warranty, samples in 7–15 days — quoted within 48 hours.
