TFT-LCD Modules · 0.96"–15.6"

TFT-LCD Display Modules from 0.96" to 15.6"

IPS and TN panels from 96×64 to 1920×1080 pixels, 300–1,000 nits standard brightness, with MIPI, RGB, SPI, MCU, LVDS or eDP interfaces — engineered around the product you ship, not the other way round.

0.96"–15.6"standard size coverage

96×64–1920×1080resolution range

300–1,000nits standard, 5,000 max

-40~+85°Cindustrial grade option

Overview

One family envelope, six engineering choices

Start from a standard model and add only what your application needs: panel technology, brightness grade, temperature range, touch, optical bonding and interface. Every choice below ships from our own Shenzhen line — AOI-inspected and 100% powered-on tested before packing.

Size range	0.96"–15.6", custom 2nd-cut formats
Resolution	96×64 to 1920×1080 (FHD)
Panel technology	IPS / TN, VA on request
Brightness grades	300 / 500 / 800 / 1,000 nits; up to 5,000 with high-brightness options
Temperature grades	-20 / -30 / -40 °C industrial options
Interfaces	MIPI DSI · RGB · SPI · MCU · LVDS · eDP
Touch	RTP / CTP optional, OCA full lamination
Certifications	ISO 9001 · IATF 16949 · RoHS · REACH

Panel Technology & Interfaces

Choose the pixel behavior, then the pipe that feeds it

IPS panels hold 80/80/80/80° viewing angles and 800:1 contrast, so colors stay true when operators look from an angle. TN panels trade that for 70/70/50/70° angles and 500:1 contrast at lower cost and faster response — the right call for cost-driven, straight-on displays.

On the electrical side we support MIPI DSI in 1/2/4-lane configurations, RGB in 16/18/24-bit, SPI, MCU 8/16-bit, LVDS 2/4-channel and eDP 1.3/1.4. Driver ICs come from the ST7789V, ILI9341, ILI9806 and EK79007 ecosystems, so your firmware team gets proven register maps and available reference code.

MIPI DSI 1/2/4-lane for 4.3"–5" high-resolution panels with low pin count.
RGB 16/18/24-bit for 2.8"–3.5" mid-size TFT with direct MCU or FPGA driving.
SPI / MCU for 0.96"–2.4" designs that count every pin and every milliamp.
LVDS 2/4-channel & eDP 1.3/1.4 for 7"–15.6" panels with long FPC runs and EMI headroom.

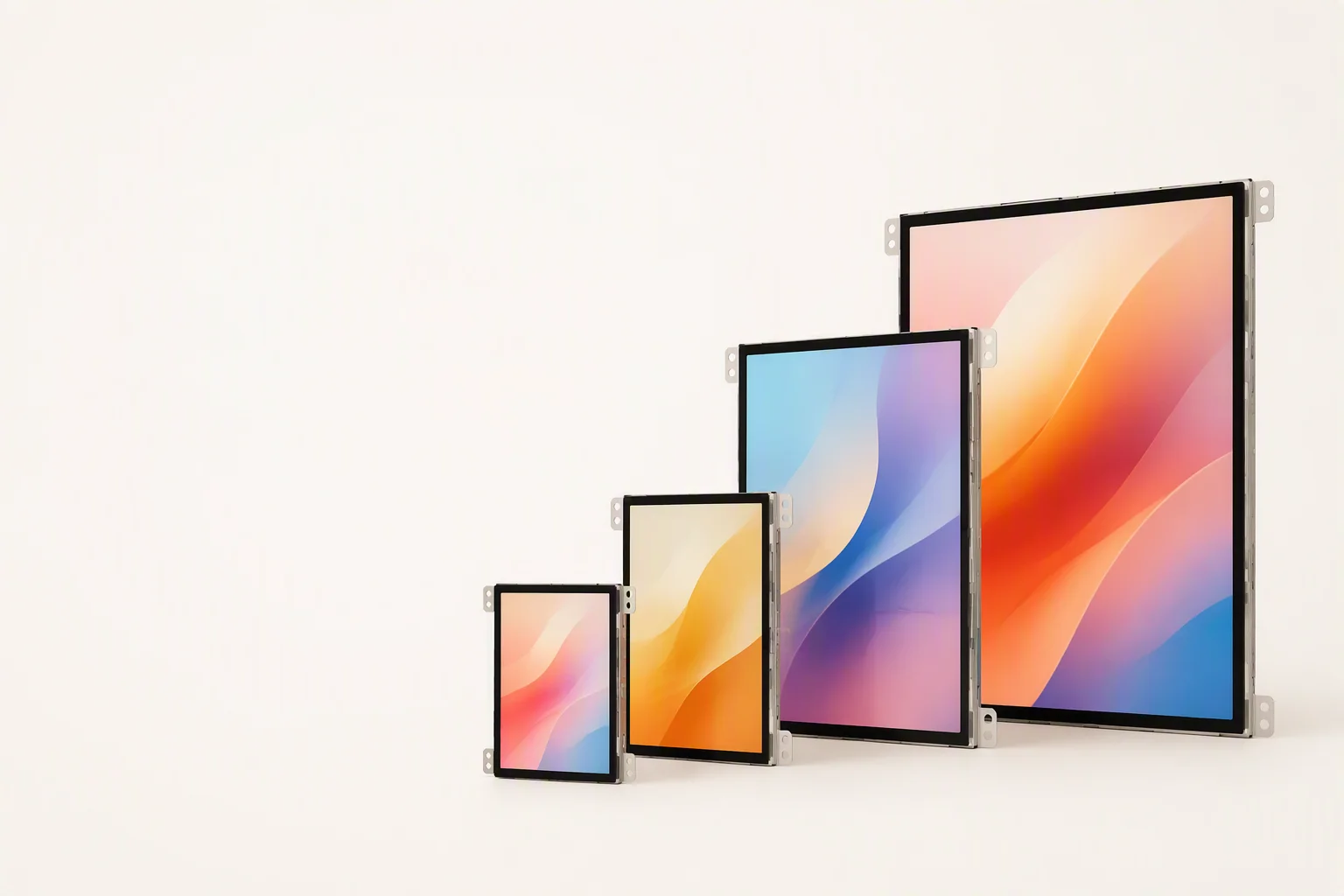

TFT-LCD modules in 2.4, 3.5, 7 and 10.1 inch sizes standing upright showing bright IPS screens on a white studio background — FIG. 02 — TFT range · ShenzhenIPS · 0.96"–15.6"

Stack Construction

Seven layers between your touch and your pixels

A TFT module is a laminated sandwich: LED backlight, light guide plate, diffuser and brightness-enhancement films, TFT array glass, liquid-crystal layer and crossed polarizers. We assemble and inspect the full stack under Class 1000 cleanroom conditions, so optical defects are caught before a module ever ships.

Isometric cutaway diagram of the TFT-LCD stack showing backlight, light guide, diffuser, liquid crystal glass and polarizer layers — FIG. 03 — TFT stack · cutawayBacklight to polarizer

Product Range

Ten stocked formats, one call away from a quote

The table below covers our most-ordered TFT-LCD modules. Each line is a live product: tooled, stocked and repeatable. Custom sizes, resolutions and 2nd-cut shapes are quoted from the same glass and driver supply chain.

Standard TFT-LCD modules — size, resolution, interface, brightness, temperature and driver IC
Size	Resolution	Interface	Brightness	Temp range	Driver IC
1.44"	128×128	SPI	300 nits	-20~+70°C	ST7789V
2.4"	240×320	SPI	300 nits	-20~+70°C	ILI9341
2.8"	240×320	MCU / RGB	350 nits	-20~+70°C	ILI9341
3.5"	320×480	RGB 18-bit	400 nits	-20~+70°C	ILI9488
4.3"	480×800	MIPI DSI	500 nits	-20~+70°C	ILI9806
5"	720×1280	MIPI DSI	500 nits	-20~+70°C	HX8399F
7"	1024×600	LVDS	500 nits	-20~+70°C	EK79007
10.1"	1280×800	LVDS	500 nits	-20~+70°C	HX8282
12.1"	1280×800	LVDS	600 nits	-30~+80°C	EK79007
15.6"	1920×1080	eDP 1.3	400 nits	-20~+70°C	Integrated TCON

Panel technology at a glance — TN vs IPS vs VA
Property	TN	IPS	VA
Viewing angle (H/V)	70/70/50/70°	80/80/80/80°	80/80/80/80°
Contrast ratio	500:1	800:1	3,000:1
Response time (typ.)	5–10 ms	15–25 ms	20–30 ms
Color depth	6-bit / 262K	6–8-bit	8-bit / 16.7M
Best fit	Cost-driven, straight-on	HMI & multi-angle viewing	Premium large-format
Relative cost	Lowest	Mid	Highest

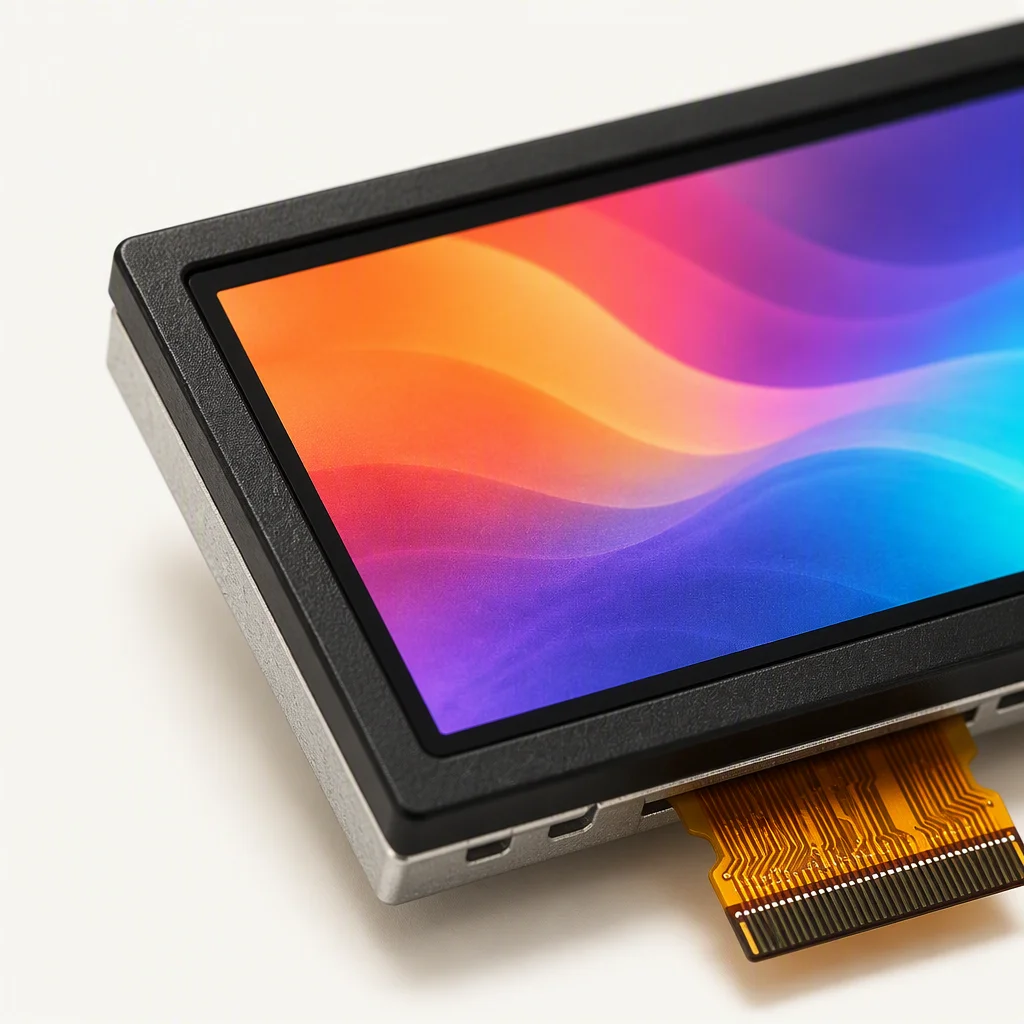

Macro view of an IPS screen edge at an oblique 60-degree angle with vivid colors staying consistent — FIG. 04 — IPS off-axis60° angle · colors hold

Applications

Where our TFT modules earn their keep

Four application families dominate our TFT-LCD volume. Each runs a dedicated engineering program — temperature grade, backlight life and certification stack tuned to the duty cycle.

Industrial HMI

7"–15.6" panels with 50K–70K h backlight life, -20~+70°C operation and a 10-year supply guarantee for factory-floor terminals.

View Industry

Medical Devices

IPS modules for patient monitors and infusion pumps with ISO 13485 line audits, IEC 60601-1 files and 5–10 year supply programs.

View Industry

EV Charging Piles

1,000–1,500 nits sunlight-readable stacks with OCA lamination and IP65-ready front assemblies for charging and payment kiosks.

View Industry

Home Appliances

Washing machines, cookers and air conditioners running 300 nits economy backlights with 10-year appliance life at high volume.

View Industry

FAQ

TFT-LCD questions we answer every week

Short answers to the four most common procurement questions. Anything else — send it with your drawing and we reply within 48 hours.

Standard models start at 500 pcs; custom 2nd-cut formats and ODM builds start at 1,000 pcs. Evaluation samples ship from 1–5 pcs so you can validate optics and interface before committing volume.

Standard samples leave Shenzhen in 7–15 days. After golden-sample approval, mass production runs 20–35 days, FOB Shenzhen. Urgent bridge runs can be scheduled against our monthly 500K–1M module capacity.

Yes. Our custom LCM program locks glass and driver roadmap behind a 10-year supply guarantee. We monitor panel end-of-life across the industry and issue EOL warnings 12 months in advance, with a last-buy window to cover the gap.

Rule of thumb: SPI for 0.96"–2.4" low-pin-count designs, RGB or MCU for 2.8"–3.5", MIPI DSI (1/2/4-lane) for 4.3"–5" high-resolution, and LVDS 2/4-channel or eDP for 7"–15.6". Send your MCU or SoC model and we will recommend the exact driver pairing.

Start a Quote

Send the size and the interface. We will return a spec, a price and a schedule.

MOQ 500 pcs, samples in 7–15 days, mass production in 20–35 days. FOB Shenzhen, CIF or DDP, payment by T/T 30/70 or L/C — quoted within 48 hours.
