Outdoor & Digital Signage Display Modules for sun, rain and round-the-clock city duty

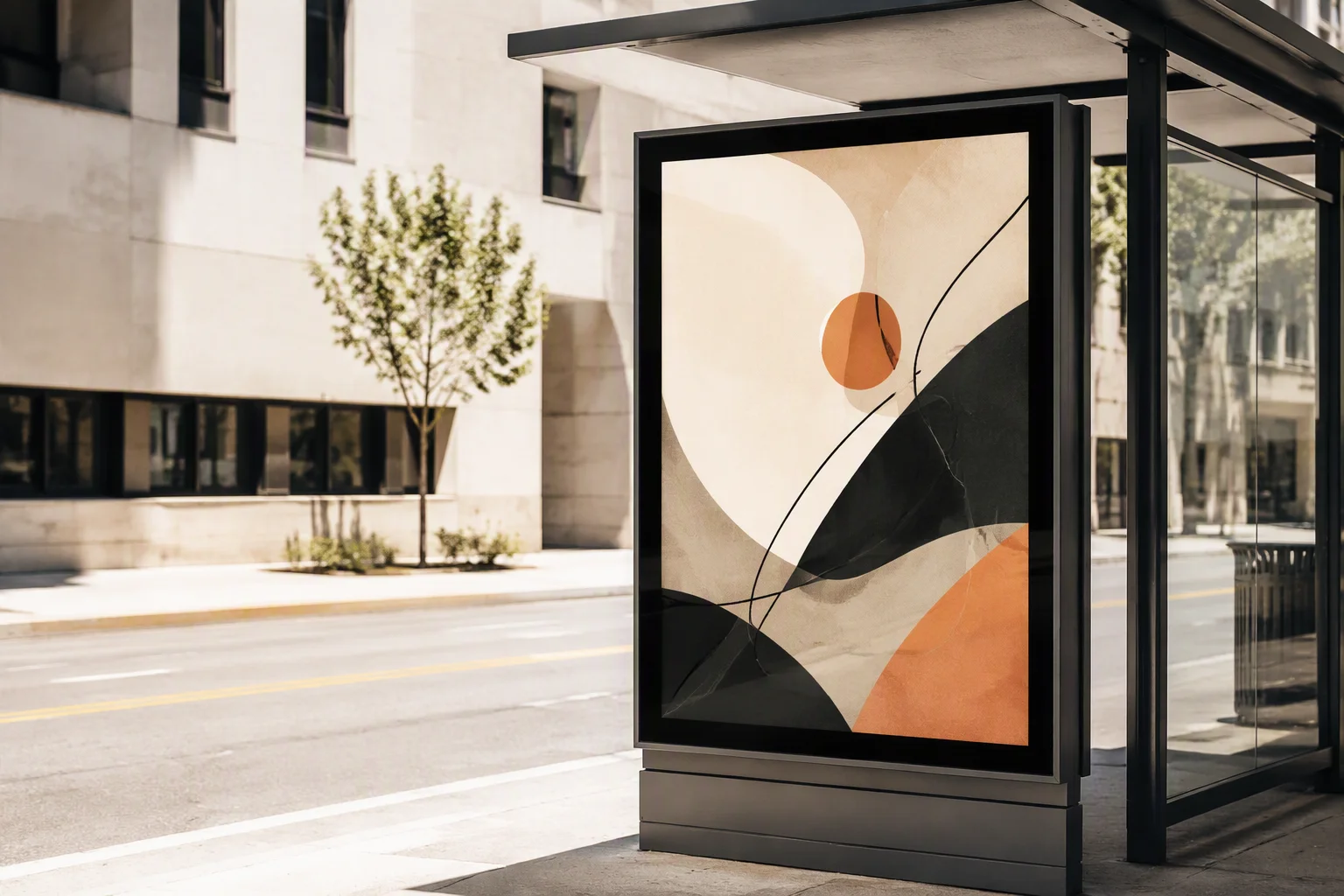

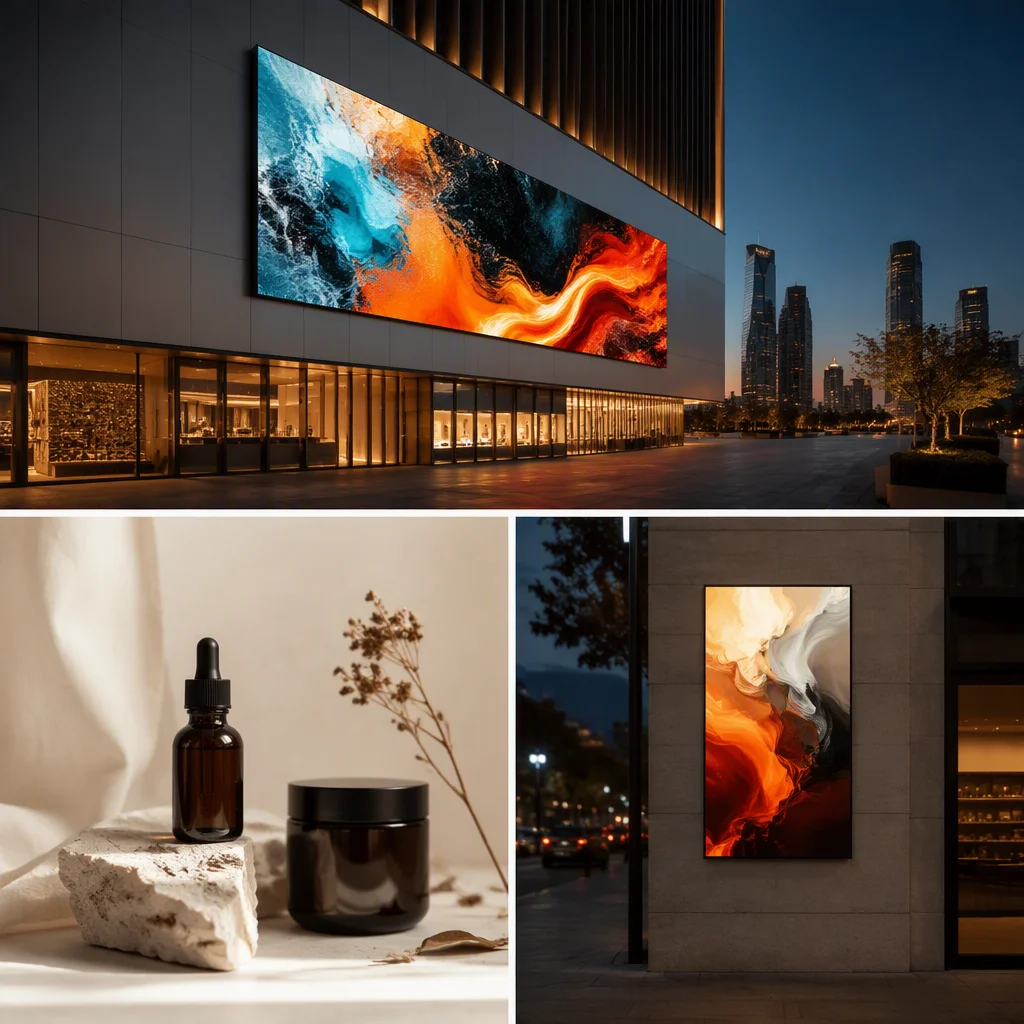

Sunlight-readable modules from 1,000 to 5,000 nits with optical bonding, AR coating and IP65/66 sealing — for EV chargers, bus stops, gas stations and building signage across 10.4"–86", with honest 25 °C/45 °C brightness ratings.
Readability outdoors is engineered, not bought off a shelf
An outdoor screen fights three enemies at once: a sun that can reach 100,000 lux, rain and dust that attack its seals, and its own backlight heat. We rate brightness in tiers, bond the optics, seal the front and design the thermal path — then verify every claim in the lab before the first unit ships.
- 1,000–1,500 nits base outdoor; 2,500–3,500 nits true sunlight; 5,000 nits extreme — tiered direct-LED array backlights matched to installation site.
- Optical bonding plus AR coating — internal reflection cut by 60%+, so less brightness survives as readable contrast.
- IP65/66 front sealing — gasketed assemblies that hold out rain, dust and pressure washing.
- Peak vs sustained brightness rated separately — honest 25 °C and 45 °C specs, verified in a thermal chamber.
Where outdoor displays fail — and how we answer
Eight failure modes from outdoor deployments, each paired with the response engineered into our high-brightness line. Every one is a measured gap with a numeric answer.
| Pain Point | The Cost | EMS-Display Response |
|---|---|---|
| Direct sunlight washes out low brightness | Noon sun needs 2,500–3,500 nits; a 1,000 nits panel disappears into glare | Tiered 1,000–5,000 nits with direct-LED array backlights |
| Reflection and glare eat contrast | Glass reflection washes out even high-nits screens in bright conditions | OCA optical bonding plus AR coating; internal reflection cut 60%+ |
| Heat from high-brightness backlights | A 5,000 nits backlight runs hot; sustained output falls without cooling | Aluminum-frame conduction cooling; separate 25 °C/45 °C ratings |
| Rain, dust and pressure washing | Unsealed fronts fail within a season of outdoor duty | IP65/66 front assemblies with gasketed covers |
| UV degradation | Sun yellows optical films and embrittles FPC over years of exposure | UV-stable films and UV-resistant cover glass |
| Energy cost of always-on signage | 24/7 operation at maximum brightness wastes power and shortens life | Ambient light sensor with auto dimming from 1,000 to 300 nits at night |
| Tender-driven procurement paperwork | Europe's 1M+ EV chargers buy through tenders that demand full compliance files | CE · FCC · RoHS · REACH documentation with every quote |
| Peak-vs-sustained spec gaps | Spec sheets list peak nits that cannot be held in real sun | Honest dual ratings verified in a thermal chamber at 45 °C |
The outdoor line, specified to the digit
Standard outdoor-grade parameters with custom variants on demand. Quote these against your site's ambient light, enclosure and mounting angle.
| Parameter | Specification |
|---|---|
| Brightness tiers | 1,000–1,500 / 2,500–3,500 / 5,000 nits |
| Size range | 10.4"–86" |
| Backlight | Direct-LED array (≥3,000 nits) with aluminum heat sink |
| Optics | OCA optical bonding; AR coating; high-transmission CTP ≥85% |
| Protection | IP65/66 front assemblies |
| Temperature | -30~+85 °C; 25 °C/45 °C dual brightness spec |
| Touch | PCAP optional at ≥85% transmission |
| Interface | LVDS · eDP · HDMI · UART |
| Certifications | CE · FCC · RoHS · REACH · UL optional |
| Applications | EV chargers, bus stops, gas stations, billboards |
| Supply | 10-year program with 12-month EOL warning |
| Lead time | Samples 7–15 days; production 20–35 days |
What outdoor programs report back
Customer types and the numbers they measured — sustained brightness, tender readiness and installation scale.
Ten-point-one-inch 1,500 nits bonded stacks across 8,000 charge points. Screens stay legible in noon sun and the IP65 front shrugs off roadside spray, summer after summer.
Twenty-one-point-five-inch 5,000 nits panels hold full brightness through a 45 °C summer day — the aluminum-frame thermal design means no derating after hours of sun.
Seven-inch 2,300 nits full-laminated payment displays, 12,000 units, with tender-ready documentation included. The compliance pack closed our bid in one round.
Send your installation environment and viewing distance — we will return a brightness spec and a thermal plan.
Ambient light, mounting angle, enclosure and screen size. 1,000–5,000 nits tiers, IP65/66, dual 25 °C/45 °C ratings, samples in 7–15 days — quoted within 48 hours.
