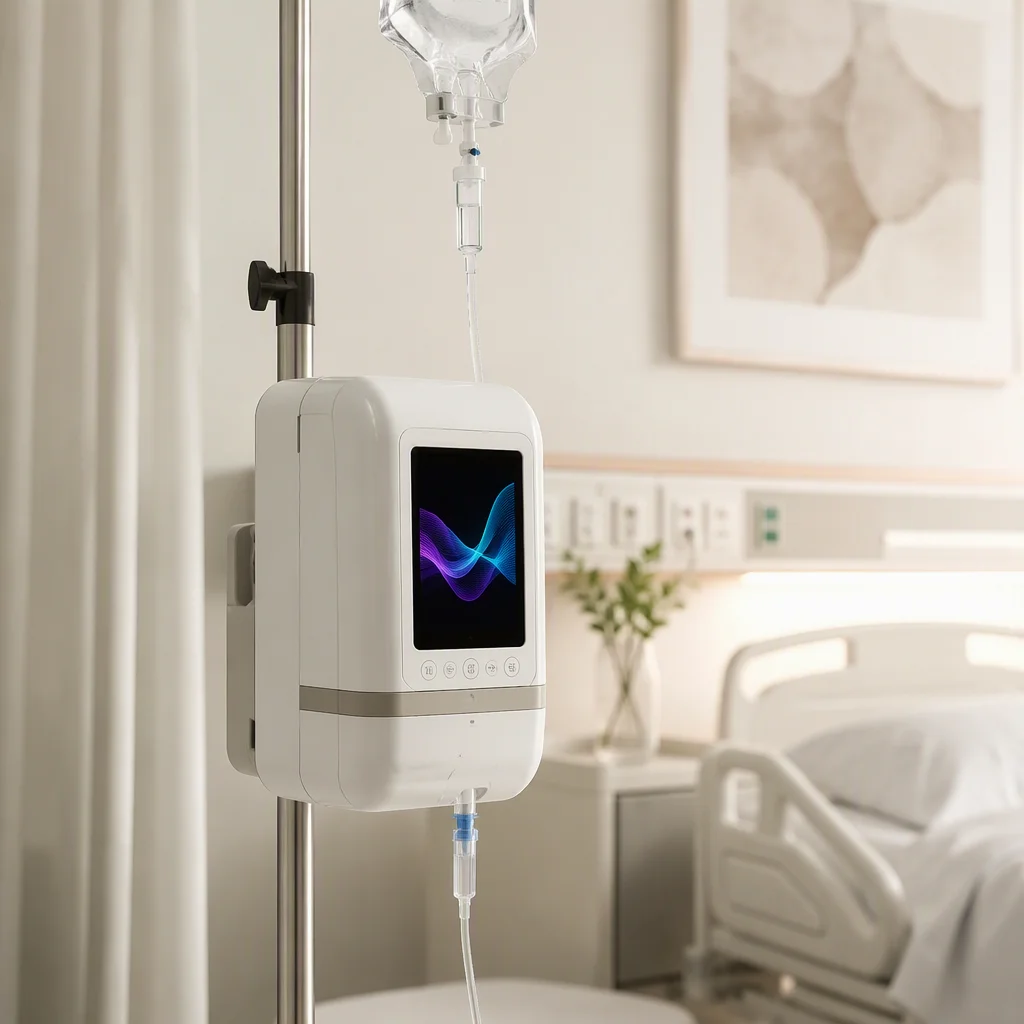

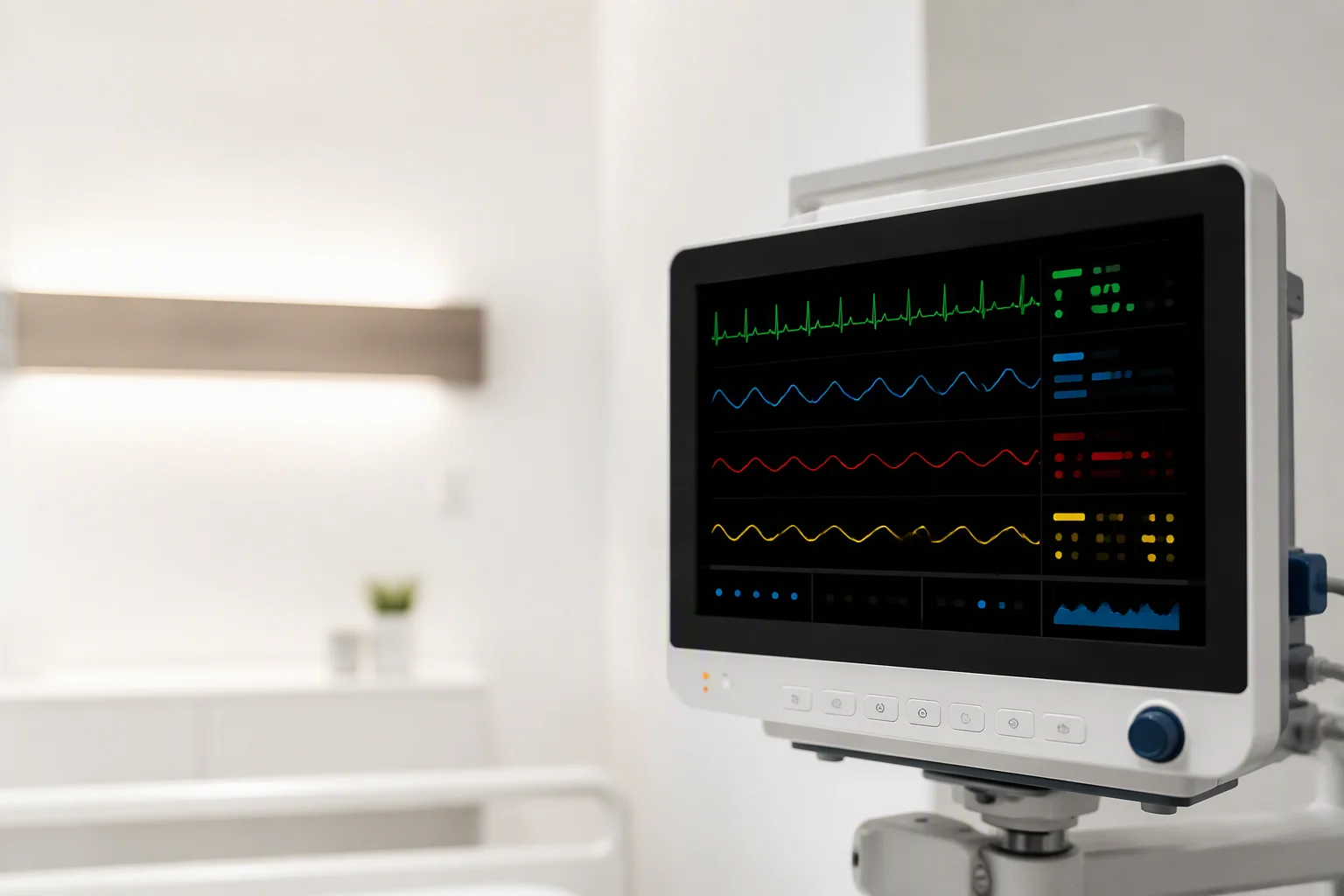

Medical Display Modules for patient monitors, pumps and imaging
Displays for patient monitors, infusion pumps and imaging consoles — backed by 5–10 year supply guarantees, IEC/UL 60601-1 compliance and ISO 13485 manufacturing. A device approved for a decade should never be orphaned by its screen.
A medical device is a 5–10 year commitment. Its display must be too.
Every regulated medical device carries a design life and a registration file. When the panel inside it hits end-of-life, the swap forces a re-qualification that can stall a product line for months and cost six figures. We build displays on the same lifecycle clock as your device.
- 5–10 year supply guarantee — glass, driver and backlight locked for the life of your registered device, from 3.5" bedside panels to 15.6" imaging screens.
- IPS full viewing angles — 80/80/80/80° at 300–500 nits, so values stay legible from every position around the bed.
- Clinical-environment hardening — disinfectant-compatible cover glass and OCA full lamination against dust, wipes and cleaning agents.
- Documentation that survives an audit — ISO 13485 batch records, IEC/UL 60601-1 files and ERP traceability from cell lot to finished module.
Where medical displays fail — and how we answer
Eight failure modes we see in regulated programs, each paired with the response engineered into our medical LCM line. Every one is a documented gap, not a promise.
| Pain Point | The Cost | EMS-Display Response |
|---|---|---|
| Panel EOL in 3–7 years | A screen swap forces device re-registration — months of delay and six-figure cost | 5–10 year supply guarantee; glass, driver and backlight locked to your device |
| IEC/UL 60601-1 leakage-current limits | A backlight design that fails EMC or safety testing stalls the entire launch | Backlight and driver co-design held to 60601-1, with full test documentation |
| ISO 13485 supplier qualification | An uncertified factory means extra audits and procurement risk for your QA team | ISO 13485:2016 manufacturing with audit-ready batch records on request |
| Narrow viewing angles at the bedside | TN panels wash out off-axis, and a misread value is a patient-safety event | IPS 80/80/80/80° full viewing angles, 300–500 nits across 3.5"–15.6" |
| Eye strain over 12-hour shifts | Blue-heavy spectra fatigue clinicians who stare at monitors all day | Low-blue-light backlight options with stable color rendering, dimmable to 10% |
| Daily disinfectant wiping | Hospital-grade chemicals craze ordinary cover glass within months | Disinfectant-compatible cover glass, tested to 1,000+ wipe cycles with 70% IPA |
| Dust and particles in lamination | Specks trapped under the cover become visible defects on bright clinical screens | OCA full lamination in a Class 1000 cleanroom seals the optical stack |
| Silent EOL mid-production | A dead panel line forces emergency redesign at the worst possible moment | Proactive EOL alert 12 months ahead, plus ERP batch traceability end to end |
The medical line, specified to the digit
Standard medical-grade parameters with custom variants on demand. Quote these against your SoC, your registration file and your production plan.
| Parameter | Specification |
|---|---|
| Size range | 3.5"–15.6" standard; custom panels to 30" for imaging consoles |
| Resolution | Up to 1920×1080 (FHD); 1280×800 and 1024×600 medical staples |
| Panel type | IPS with 800:1 contrast, 16.7M colors and anti-glare finish |
| Viewing angle | 80/80/80/80° full angle, tuned for off-axis bedside reading |
| Brightness | 300–500 nits standard; 1,000 nits option for OR and high-ambient rooms |
| Interface | MIPI / LVDS / RGB / eDP / SPI — matched to your medical SoC |
| Touch | PCAP 10-point, glove-tolerant, OCA laminated to the cover |
| Cover glass | Disinfectant-compatible; AG / AR coating optional |
| Supply guarantee | 5–10 years with locked glass, driver and backlight BOM |
| Certifications | IEC/UL 60601-1 · ISO 13485 · CE · FCC · RoHS · REACH |
| Traceability | ERP batch QR from cell lot to module; EOL alert 12 months ahead |
| Lead time | Samples in 7–15 days; production 20–35 days, FOB Shenzhen |
What medical programs report back
Customer types and the numbers they measured — supply continuity, approval time and line consolidation.
Moved to a locked 10-year supply program two quarters before our old panel hit EOL. No requalification, no registration re-filing — the production line never paused.
IEC/UL 60601-1 documentation arrived with the first samples, so safety approval closed in 9 weeks instead of the usual 5 months of back-and-forth.
One 10.1-inch full-laminated module now serves three console models, cutting our BOM count and audit scope. 12,000 units shipped in year one.
Send us your medical spec — we'll return a supply plan, not just a price.
Include panel size, interface, certification target and annual volume. Medical quotes carry the 5–10 year supply guarantee, the full documentation package and a 48-hour response, FOB Shenzhen or DDP.
