Display Module Manufacturing Capabilities from one Shenzhen campus

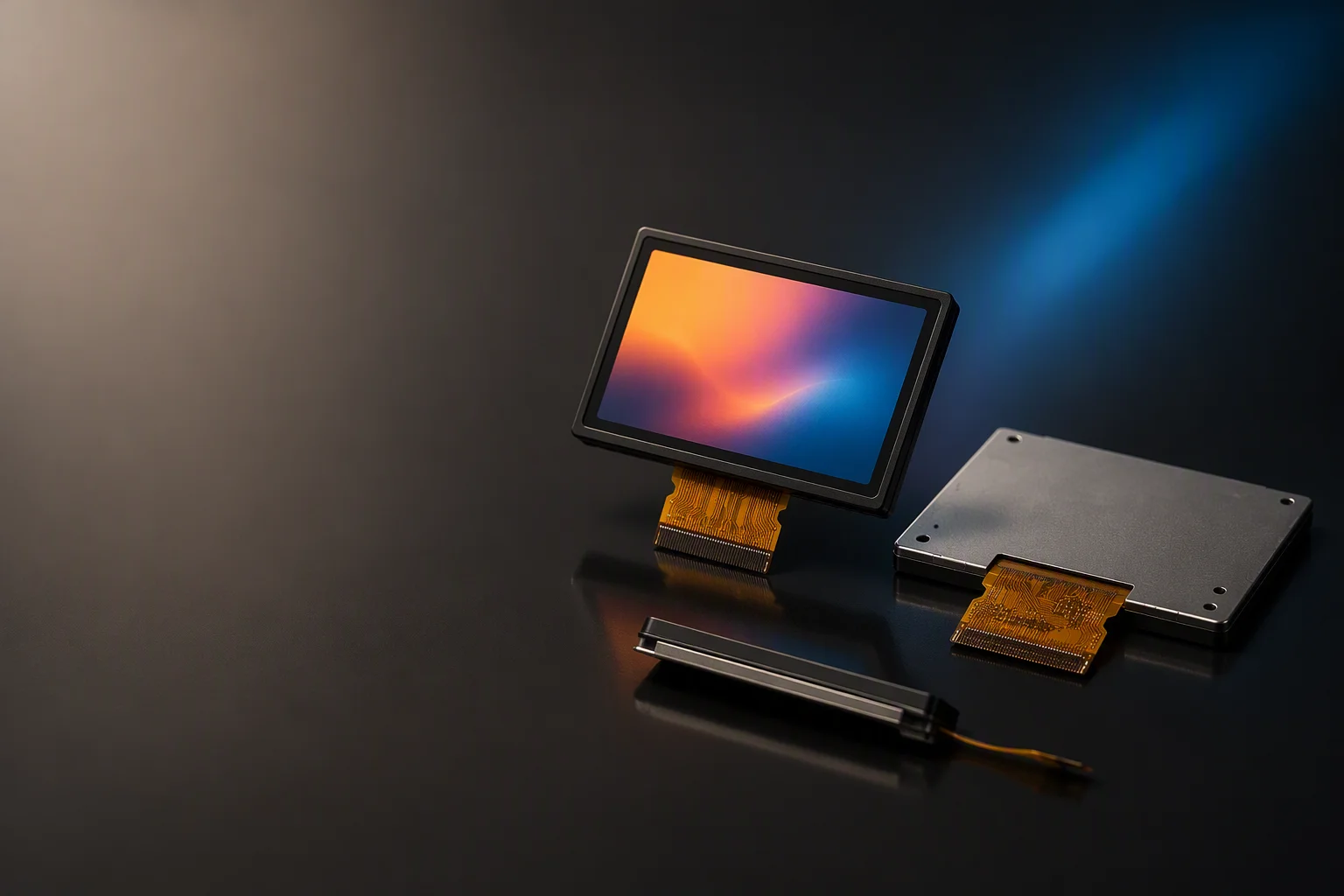

Seven capability branches under one roof: TFT-LCD, OLED, COG small-size, custom LCM, high-brightness, touch integration and interface engineering — covering sizes from 0.42" to 21.5" across five panel technologies: TN, IPS, VA, PMOLED and AMOLED.
The manufacturing envelope behind every module
Every line below runs on the same campus: a Class 1000 cleanroom, a six-station assembly chain from cell cutting to ESD packaging, and 100% powered-on testing with AOI inspection before any module ships. ISO 9001, IATF 16949 and ISO 13485 quality systems run across the line, so the certification stack follows the product family, not the other way round.
On the electrical side, driver ICs are drawn from the ST7789V, ILI9341 and NT35510 ecosystems, each shipped with register maps and reference code so your firmware team starts from a proven base instead of a blank datasheet. Interface support spans MIPI DSI, RGB, SPI, MCU, LVDS, eDP, HDMI and UART, so the pipe that feeds the panel is matched to your SoC rather than the other way round.
Customization runs on the same line: 2nd cutting to your exact active area, brightness tuned from 300 to 5,000 nits, and shapes from bar-type to round to notch — quoted with transparent NRE on an 8-step ODM program that runs from drawing to golden-sample sign-off.
- COG / COF / FOG bonding — driver IC attached with ACF at ±0.05 mm alignment accuracy under Class 1000 cleanroom conditions.
- OCA full lamination — touch, cover glass and optical bonding sealed into one dust-free stack for outdoor and medical duty.
- 2nd-cutting mastery — 391+ custom SKUs delivered; bar-type, round and irregular shapes are everyday work, not special projects.
- ERP batch traceability — QR-coded from cell lot to finished module, with proactive EOL warnings issued 12 months ahead.

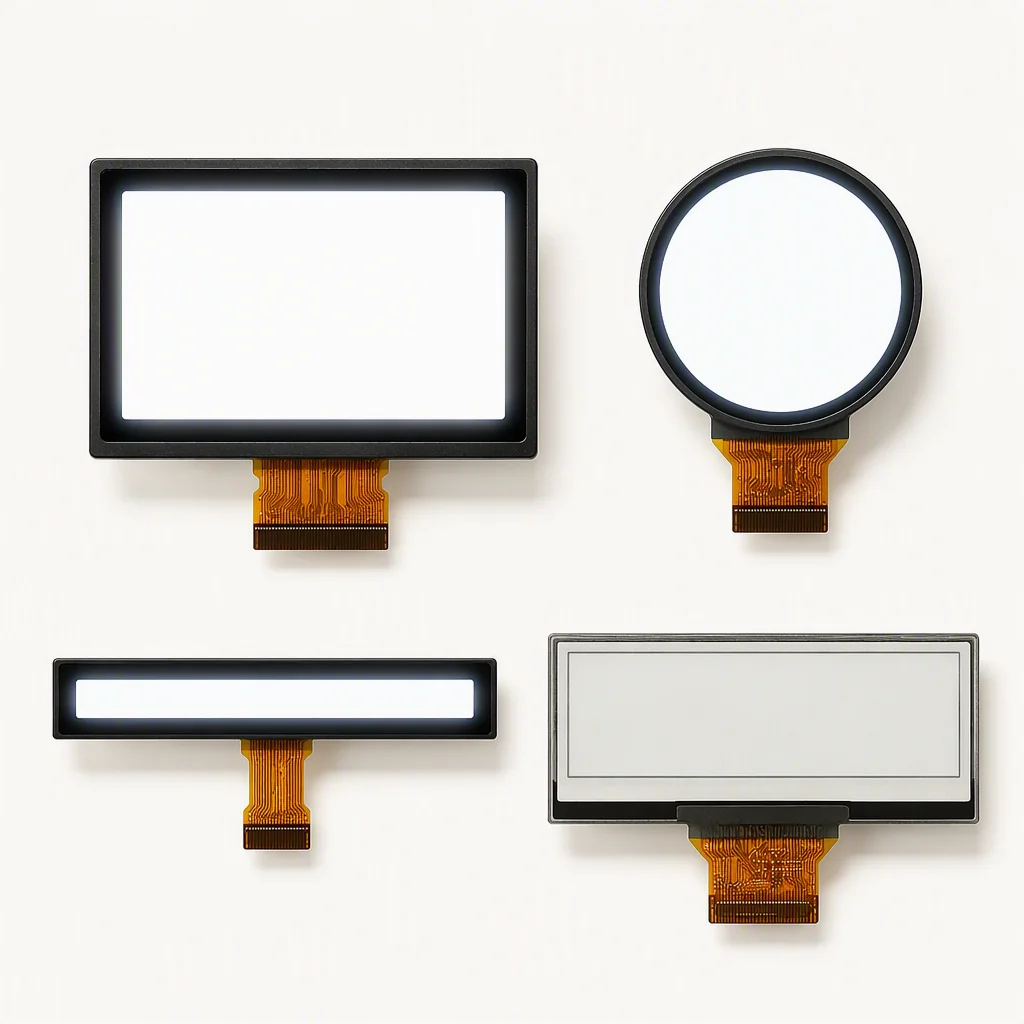

Eight product lines, one accountable factory
Start from a standard module or open a custom program — every line below is manufactured, tested and shipped from our own Shenzhen line, with the same sample lead time and traceability behind it. Each category page lists stocked sizes, interface families and the certification stack that travels with the module.
TFT-LCD Modules
0.96"–15.6" IPS/TN panels, 96×64–1920×1080, 300–1,000 nits with MIPI, RGB, SPI, LVDS or eDP interfaces and -40~+85°C industrial temperature grades.
ExploreOLED & AMOLED
PMOLED 0.42"–2.8" and round AMOLED 1.2"–5.5" with >10,000:1 contrast and µA-level standby for TWS cases and smartwatches.
ExploreCOG Small-Size
Character 8×2–40×4 and graphic 96×64–320×240 monochrome modules on the industry-standard 128×64 platform, with ST7565/ST7567 drivers and -30~+85°C operation.
ExploreCustom LCM & ODM
2nd-cut shapes, bar and round formats, UART / HDMI / Android / Linux board-level modules on an 8-step ODM program with NRE quoted transparently before tooling starts.
ExploreHigh-Brightness
500–5,000 nits sunlight-readable LCD with OCA bonding, AR coating and thermal design for outdoor duty, rated for IP65-ready front assemblies.
ExploreTouch-Integrated
RTP, CTP and 10-point PCAP from 0.85"–15.6" with OCA full lamination and AG/AR cover glass, plus driver support for Windows, Android and Linux.
ExploreInterface Options
MIPI, RGB, SPI, MCU, LVDS, eDP, HDMI and UART — eight protocol families matched to your SoC, with adapter boards for quick evaluation.
ExploreMonochrome LCD
TN / STN / VA character and graphic panels with -30~+85°C wide temperature and 50K+ hour backlight life, at the lowest cost per pixel in the family.
Explore
Tell us the screen. We'll return a spec, a price and a schedule.
MOQ 500 pcs, samples in 7–15 days, mass production in 20–35 days. FOB Shenzhen, CIF or DDP, payment by T/T 30/70 or L/C — quoted within 48 hours.
