Custom LCD Modules (LCM), built to your drawing — not our catalog
2nd-cutting custom sizes, 300–5,000 nits brightness, round and bar shapes, custom interfaces, integrated touch and board-level options — delivered through an 8-step ODM process with a 10-year supply guarantee, from our Shenzhen factory.
A customization envelope, not a fixed price list
Every variable below is quotable in isolation or combined: size, shape, brightness, backlight color, interface, pinout, touch and board-level electronics. Standard industry panels reach end-of-life in 3–7 years; our custom LCM program locks the glass and driver roadmap behind a 10-year supply guarantee instead.
| Custom sizes | 2nd-cutting from 0.96" to 15.6" panels, active-area exact |
|---|---|

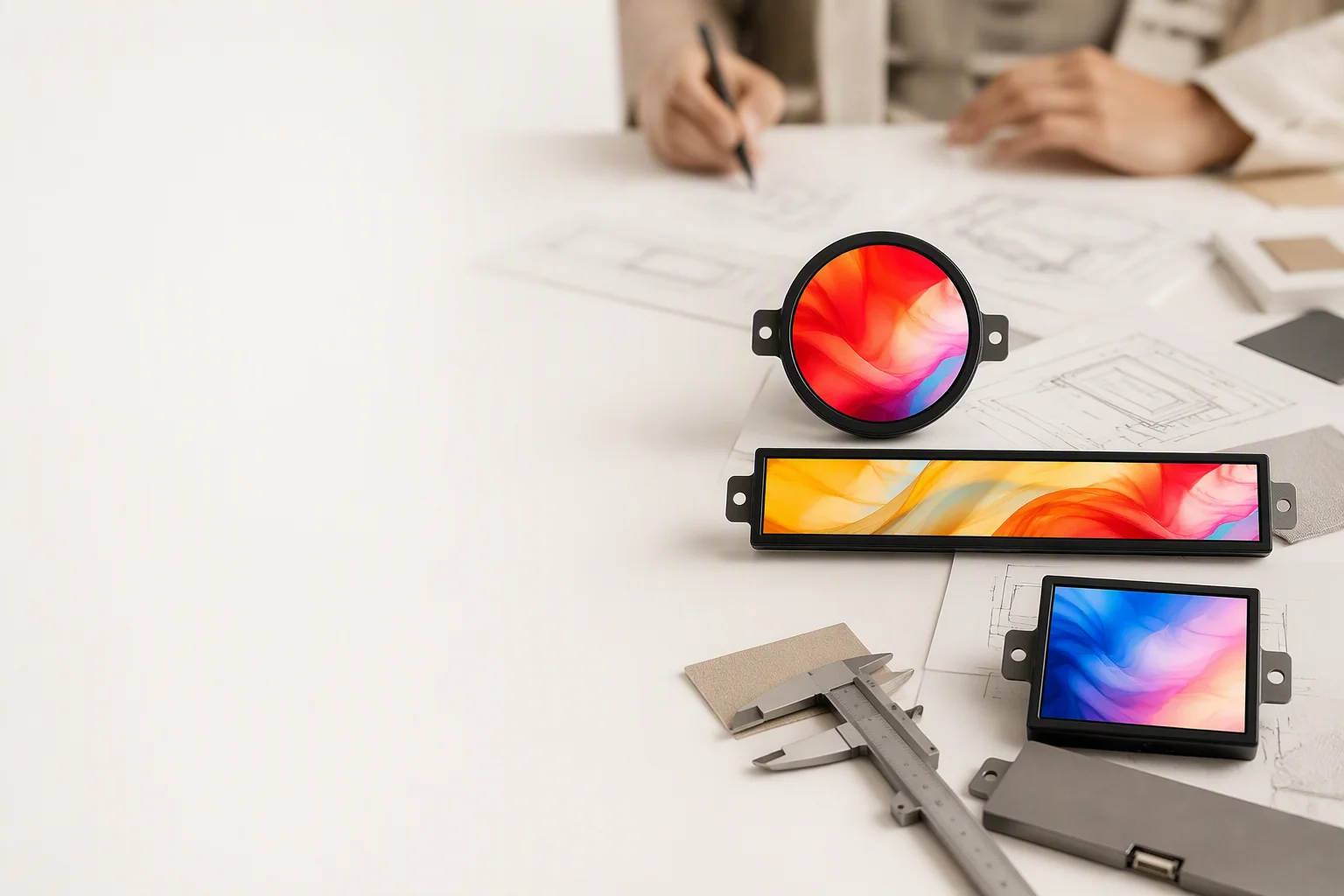

| Custom shapes | Round, bar-type, stretched and free-form 2nd-cut formats |
| Brightness range | 300 to 5,000 nits, four standard grades + custom |
| Backlight options | Single-color LED, RGB and high-brightness LED arrays |
| Interfaces & pinout | MIPI · RGB · SPI · MCU · LVDS · eDP · UART, custom FPC and connector |
| Touch integration | RTP / CTP / PCAP, OCA full lamination optional |
| Board-level options | UART / HDMI / Android / Linux driver boards, 1.3"–21.5" |
| Certifications | ISO 9001 · IATF 16949 · ISO 13485 · CE · FCC · RoHS · REACH |
Six dials we turn for every custom LCM
2nd-cutting lets us start from a standard cell and trim it to your exact active area — that is how we have delivered 391+ custom SKUs across medical, automotive and industrial programs without re-tooling a panel plant. Each dial below is a real engineering decision with a documented price and lead-time effect.

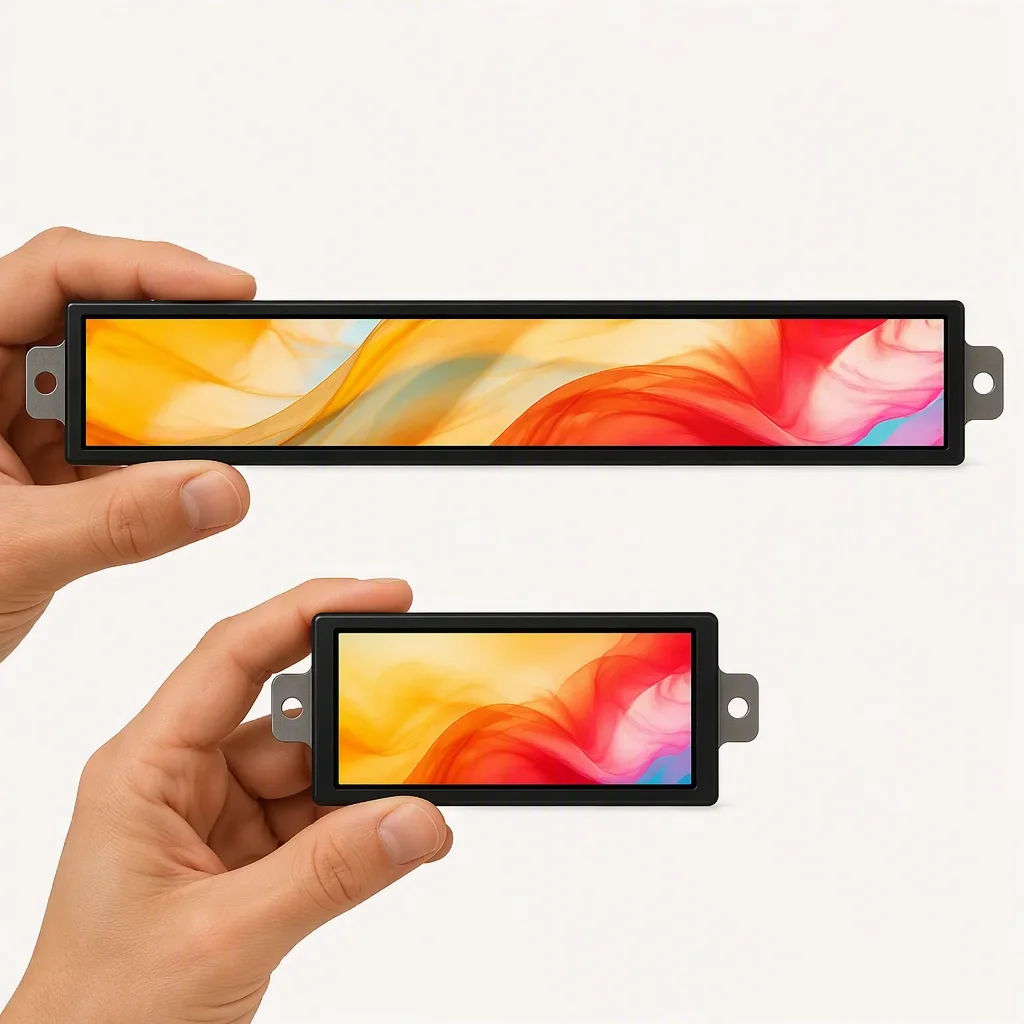

- Size & shape — round dials from 1.28", bar-type shelf displays up to 8.8" × 2.4" active area, and stretched formats for dashboards.
- Brightness & backlight — 300 nits economy builds to 5,000 nits outdoor stacks, with RGB backlights for status color-coding.
- Interface & pinout — FPC length, connector orientation and pin sequence redrawn to mate with your mainboard.
- Touch — RTP for gloved industrial use, PCAP 10-point for consumer products, laminated or air-gapped.
- Board-level — UART serial, HDMI or Android/Linux boards for teams that want a display as a peripheral.
- Certification packs — IATF 16949 for automotive, ISO 13485 files for medical, CE/FCC for EU and US markets.
The 8-step road from your sketch to a shipped module
An ODM build follows a fixed gate sequence so nothing is re-done twice. You sign off at each gate — your approval is a checkpoint, not a formality. At gate three you receive a transparent NRE breakdown; at gate six you approve the golden sample that mass production is measured against.
Requirement Intake
You send size, resolution, interface and environment data. We return a feasibility check with your drawing set in hand.
Spec Confirmation
Mechanical drawing, electrical spec and connector choice are frozen into a datasheet. You approve the drawing set.
Quote & NRE
Unit price, tooling cost and lead-time plan are itemized. NRE is transparent and credited into volume pricing.
Sampling
Our line builds 2nd-cut tooled samples with your exact active area and interface. You receive them for bench validation.
Sample Approval
Optics, brightness, touch and FPC fit are checked against your sign-off list. Issues are corrected on the next build.
Pilot Run
A small pilot batch runs on the production line with your fixtures. AOI and 100% powered-on test apply to every unit.
Mass Production
Full-volume manufacturing runs against the approved golden sample, with in-line QC and batch traceability from cell lot. You receive weekly yield and shipment reports to plan your own line.
Shipment
ESD packaging, sealed export cartons and QR-coded batch records leave FOB Shenzhen — CIF or DDP on request. Your logistics team confirms the booking against the agreed delivery window.
The numbers behind a decade of supply
Engineering support is documentation-heavy and delivery-tight: mechanical, electrical and connector drawings before you commit, then ERP-level traceability and proactive end-of-life management after you ship. These are the parameters our customers quote against.
| Parameter | Specification |
|---|---|
| Drawing deliverables | Mechanical outline, electrical interface, connector and FPC drawings before tooling |
| Quote response | 48 hours from a complete requirement set |
| NRE / tooling | Transparent per-project itemization, credited into volume pricing |
| Custom sample lead | 15–25 days after spec sign-off |
| Mass production lead | 20–35 days after golden-sample approval |
| Sample MOQ | 1–5 pcs for evaluation; production builds from 1,000 pcs |
| Supply guarantee | 10-year program locking glass, driver and backlight BOM |
| EOL management | Proactive warning 12 months ahead, last-buy window to cover the gap |
| Traceability | ERP batch QR from cell lot to finished module |
| Medical programs | 10-year supply commitment with ISO 13485 batch records |
| Automotive programs | IATF 16949 line audits and AEC-Q100 graded components |
| Industrial programs | 5+ year supply projects with 50K–70K h backlight life |
Custom LCM questions we answer every week
Short answers to the four most common ODM procurement questions. Anything else — send it with your drawing and we reply within 48 hours.
Send the drawing. We will return a spec, an NRE breakdown and a schedule.
Free selection consultation and sample application — include your size, shape, interface and volume. FOB Shenzhen, CIF or DDP, quoted within 48 hours.
