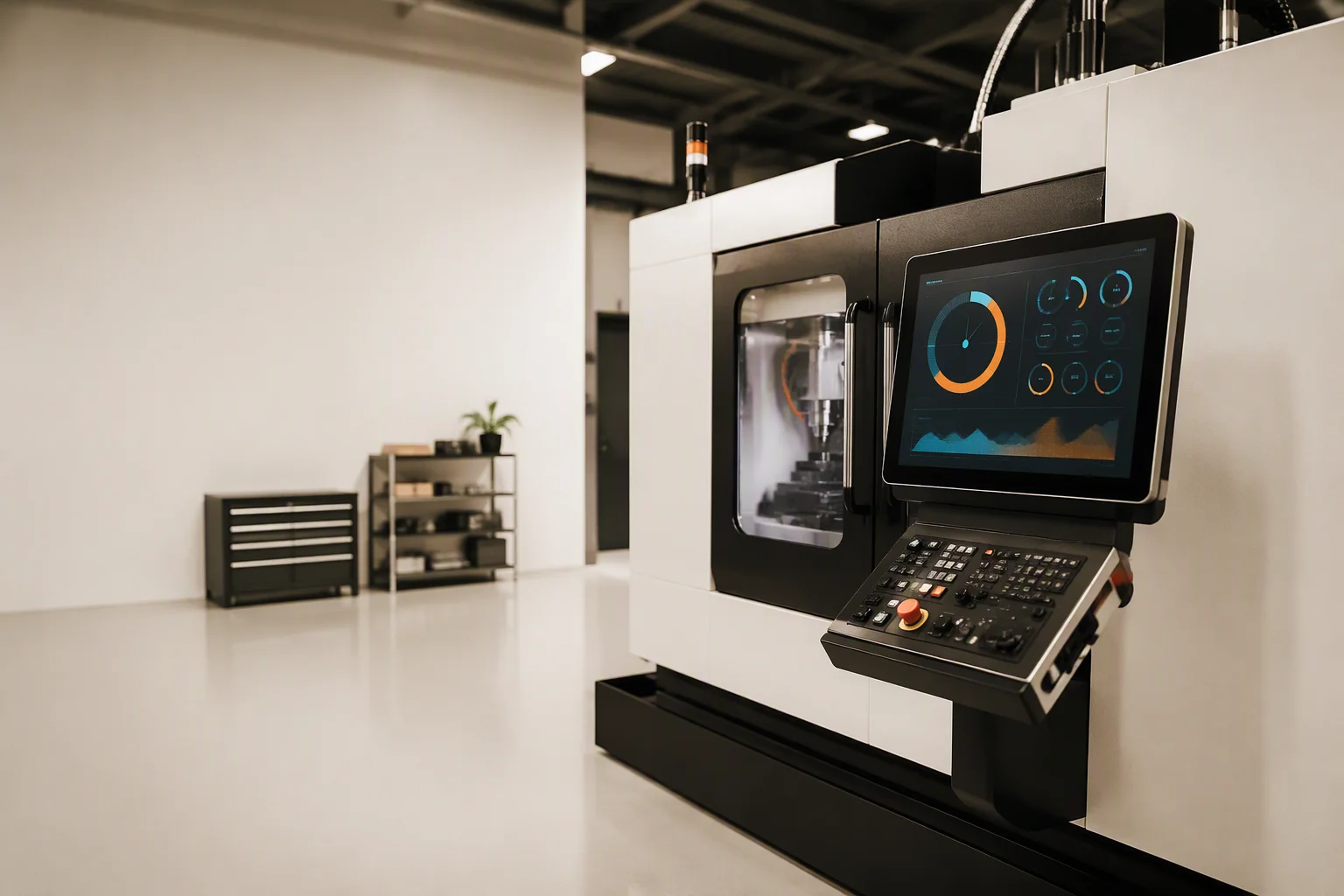

Industrial HMI display modules built for 10-year machine life
TFT-LCD and touch modules rated -40~+85°C, with 50K–70K hour backlight life, 500–1000 nits brightness and a 10-year supply guarantee — for machine control, PLC panels, HMI terminals and charging stations.
Where industrial displays fail on the factory floor
Eight failure modes we see in machine-control programs, each paired with the response engineered into our industrial LCM line. Every one is a documented gap, not a promise.
| Pain Point | The Cost | EMS-Display Response |
|---|---|---|
| Wide temperature, -40~+85°C | Consumer panels rated -20~+70°C ghost on cold starts and in heat-soaked enclosures | Wide-temperature glass and driver selected to -40~+85°C, Ampire-grade industrial spec |
| Backlight burn-out on 7×24 duty | Standard backlights dim below 30K hours, forcing mid-life panel replacements | 50K–70K hour backlight life with constant-current LED drive and 10% dimming |
| Glare in bright factories | 300 nits screens wash out near windows, skylights and welding bays | 500–1000 nits panels with optional OCA optical bonding against reflections |
| Panel EOL in 3–7 years | HMI machines live 10+ years; a dead panel forces redesign and re-certification | 10-year supply guarantee with locked glass, driver and backlight BOM |

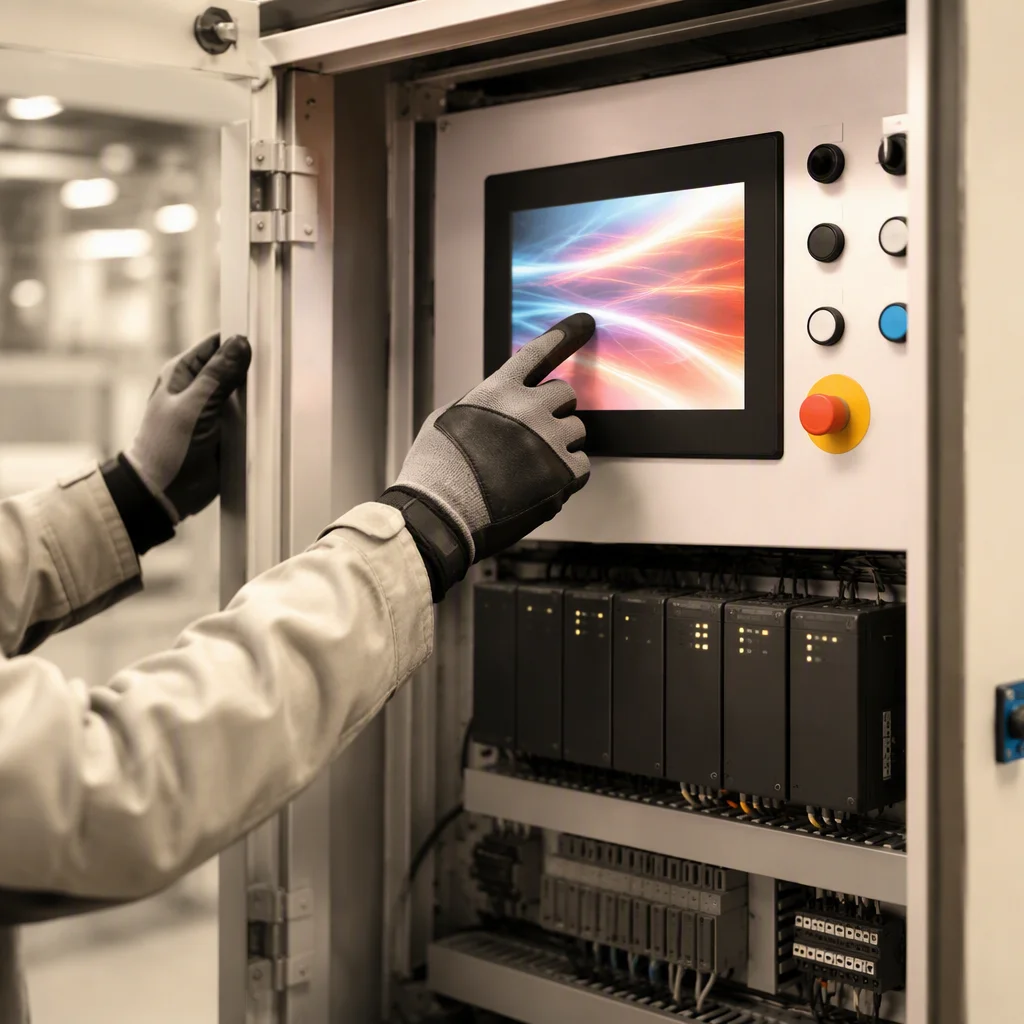

| Gloved operators | RTP-only panels miss presses through 2 mm work gloves at line speed | RTP rated for 2 mm gloves; CTP 10-point PCAP with glove mode as option |
| Dust, oil and humidity | Unsealed stacks accumulate particulates and fog within 12–18 months | OCA full lamination plus gasket-ready mounting for IP65 bezels |
| Re-qualification cost on swap | A substitute panel re-opens EMC and safety files — 3–6 month re-test cycles | Same-form-factor cross-spec replacement shipped with a documentation pack |
| Long FPC runs in steel cabinets | Signal integrity degrades past 300 mm, causing flicker on 60 Hz drives | LVDS 2/4-channel and MIPI DSI interfaces with EMI headroom for 300 mm+ runs |
The industrial line, specified to the digit
Standard industrial-grade parameters with custom variants on demand. Quote these against your controller, your enclosure and your production plan.
| Parameter | Specification |
|---|---|
| Size range | 3.5"–15.6" standard; custom 2nd-cut formats for panel builders |
| Resolution | 1024×600, 1280×800 and 1920×1080 (FHD) industrial staples |
| Panel type | IPS with 800:1 contrast, 16.7M colors and 80/80/80/80° viewing angles |
| Temperature grade | -40~+85°C operating; -30°C storage rating for unheated warehouses |
| Brightness | 500–1,000 nits standard; 1,500 nits sunlight option for bright halls |
| Backlight life | 50K–70K hours with constant-current drive; 10% dimming for night shifts |
| Interface | LVDS 2/4-channel · RGB · MIPI DSI · UART smart-screen option |
| Touch | RTP glove-rated / CTP 10-point PCAP, OCA full lamination |
| Optical bonding | OCA full lamination; AG / AR cover glass for glare and scratch duty |
| Supply guarantee | 10 years with locked BOM; proactive EOL alert 12 months ahead |
| Certifications | ISO 9001 · CE · FCC · RoHS · REACH; IATF 16949 line on request |
| Lead time | Samples in 7–15 days; production 20–35 days, FOB Shenzhen |
What industrial programs report back
Customer types and the numbers they measured — supply continuity, field failure rates and sunlight readability in real deployments.
Ran our 10.1" 1280×800 LVDS panel in a 5-year control program. When the original supplier EOL'd their glass, the locked BOM kept our line running with zero requalification.
Needed 1,500 nits sunlight-readable touch inside a ventilated kiosk. Full lamination and thermal design kept the panel inside spec through two winters and two summers.
Glove-rated RTP plus OCA lamination cut field touch failures by 80% across 4,000 installed terminals.
Send us your HMI spec — we'll return a 10-year supply plan, not just a price.
Include panel size, interface, touch type, brightness and annual volume. Industrial quotes carry the 10-year supply guarantee, the documentation pack and a 48-hour response, FOB Shenzhen or DDP.
