Popular20×4 Character LCD
HD44780-compatible, 98×60mm, blue backlight. The industry standard for rack equipment, UPS panels, and instrumentation.
- Format
- 20 chars × 4 lines
- Outline
- 98 × 60 mm
Product Line
LCD Modules
Character and graphic LCD modules for industrial control, instrumentation, medical devices, and embedded systems. Proven reliability, wide temperature range, long-term availability.
Overview

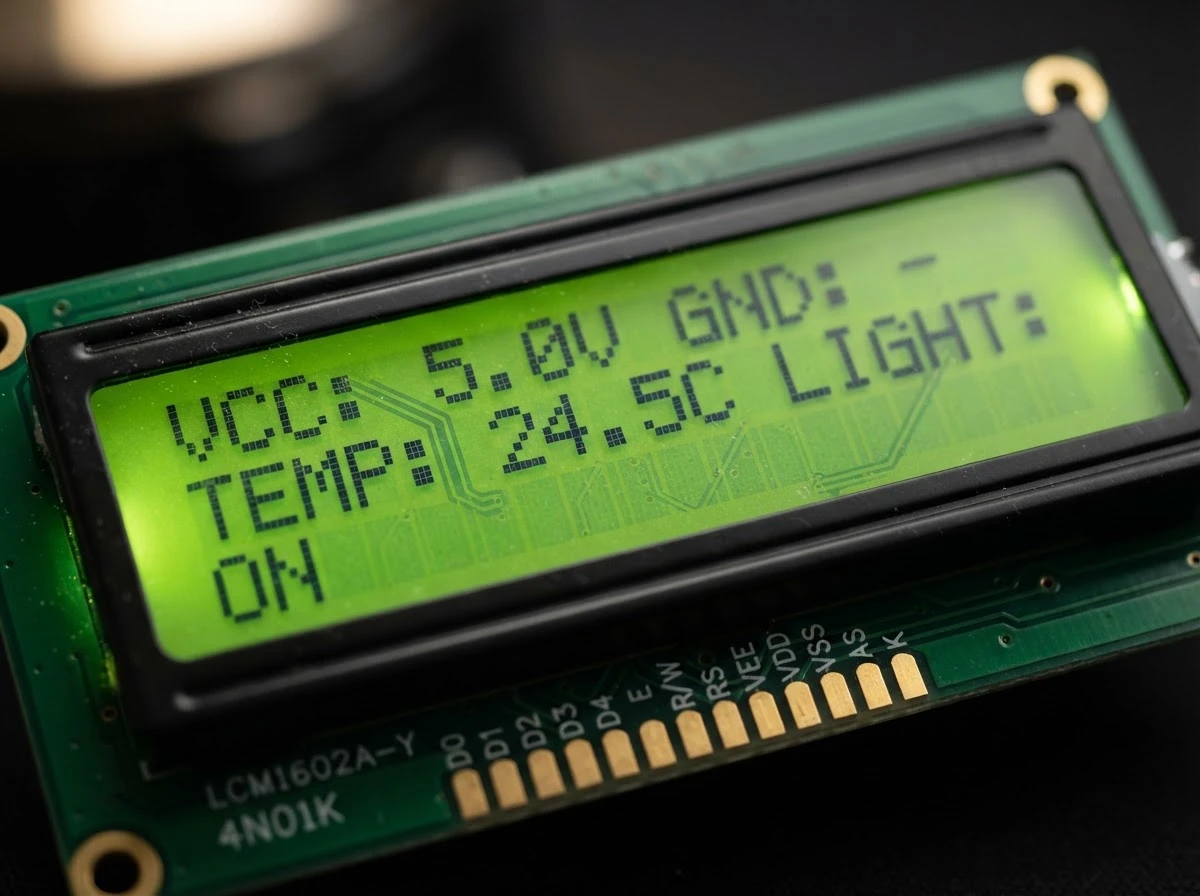

The Workhorse of Embedded Displays
LCD (Liquid Crystal Display) modules remain the most cost-effective and widely deployed display technology for industrial equipment. Our LCD modules combine proven transflective or transmissive LCD technology with integrated controllers and LED backlights — ready to drop into your design.
- Character LCDs (8×2 to 40×4) with HD44780-compatible interface
- Graphic LCDs (122×32 to 320×240) with ST7920, RA8835 controllers
- Multiple backlight options: yellow-green, white, blue, RGB
- FSTN and STN technologies for optimal contrast
Specifications
Technical Specifications
| Display Technology | STN / FSTN / TN LCD, transflective or transmissive |
| Available Formats | 8×2, 16×2, 20×2, 20×4, 40×2, 40×4 (character); 122×32, 128×64, 240×64, 240×128, 320×240 (graphic) |
| Controller Options | HD44780, KS0066, ST7920, RA8835, SBN0064 |
| Interface | 4/8-bit Parallel, SPI (graphic models) |
| Backlight Colors | Yellow-green, White, Blue, Amber, RGB (custom) |
| Backlight Lifetime | 50,000–100,000 hours (LED) |
| Viewing Direction | 6:00 or 12:00 (TN); wide-angle (FSTN) |
| Operating Temperature | -20°C to +70°C (standard), -30°C to +80°C (extended) |
| Supply Voltage | 3.3V or 5V DC |
| Connector | Pin header (2.54mm pitch), FPC, Zebra strip |
Variants
Popular
Best Seller
Advanced
Popular LCD Module Configurations
PopularBest Seller128×64 Graphic LCD
ST7920 controller, white LED backlight, 93×70mm. Supports text and graphics — ideal for data loggers and test equipment.
- Resolution
- 128 × 64 pixels
- Outline
- 93 × 70 mm

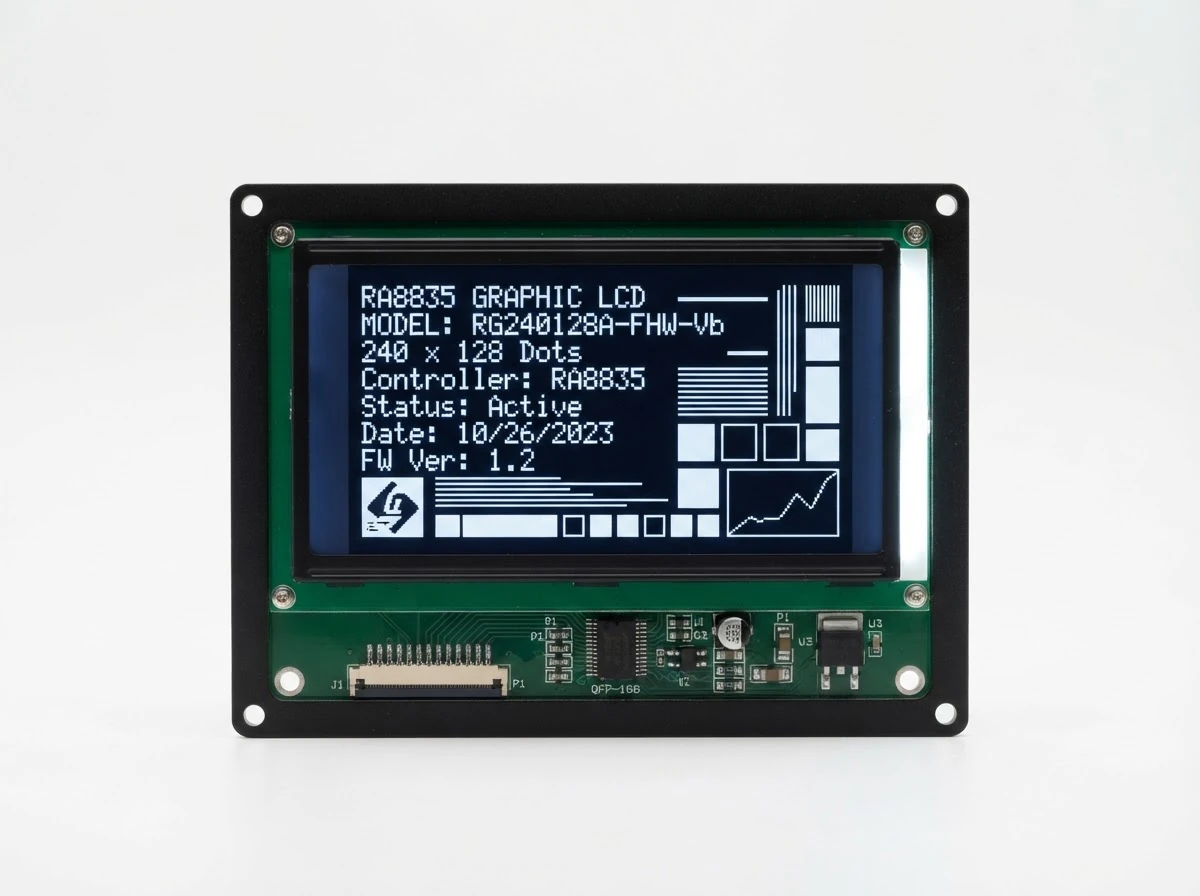

Advanced240×128 Graphic LCD
RA8835 controller, white backlight, 144×104mm. Large-format graphic display for industrial HMIs and medical monitors.
- Resolution
- 240 × 128 pixels
- Outline
- 144 × 104 mm
Applications
Where LCD Modules Excel
Related Products
Complete Your Design
Get a Quote
Need LCD Modules for Your Project?
Tell us your requirements — format, backlight color, quantity — and we'll send a detailed quote within 24 hours.
