Product Line

E-Paper Displays

Bistable, reflective e-paper (e-ink) display modules that consume zero power while displaying an image. Sunlight-readable, paper-like — ideal for IoT labels, smart retail, and signage.

Overview

Paper-Like, Zero-Power Displays

E-paper uses electrophoresis — tiny microcapsules containing charged pigment particles. Once an image is written, it stays indefinitely without power. The result: a display that reads like paper, works in direct sunlight, and sips power only when updating.

Bistable — retains image with zero power consumption
180° viewing angle, fully sunlight-readable (reflective, not emissive)

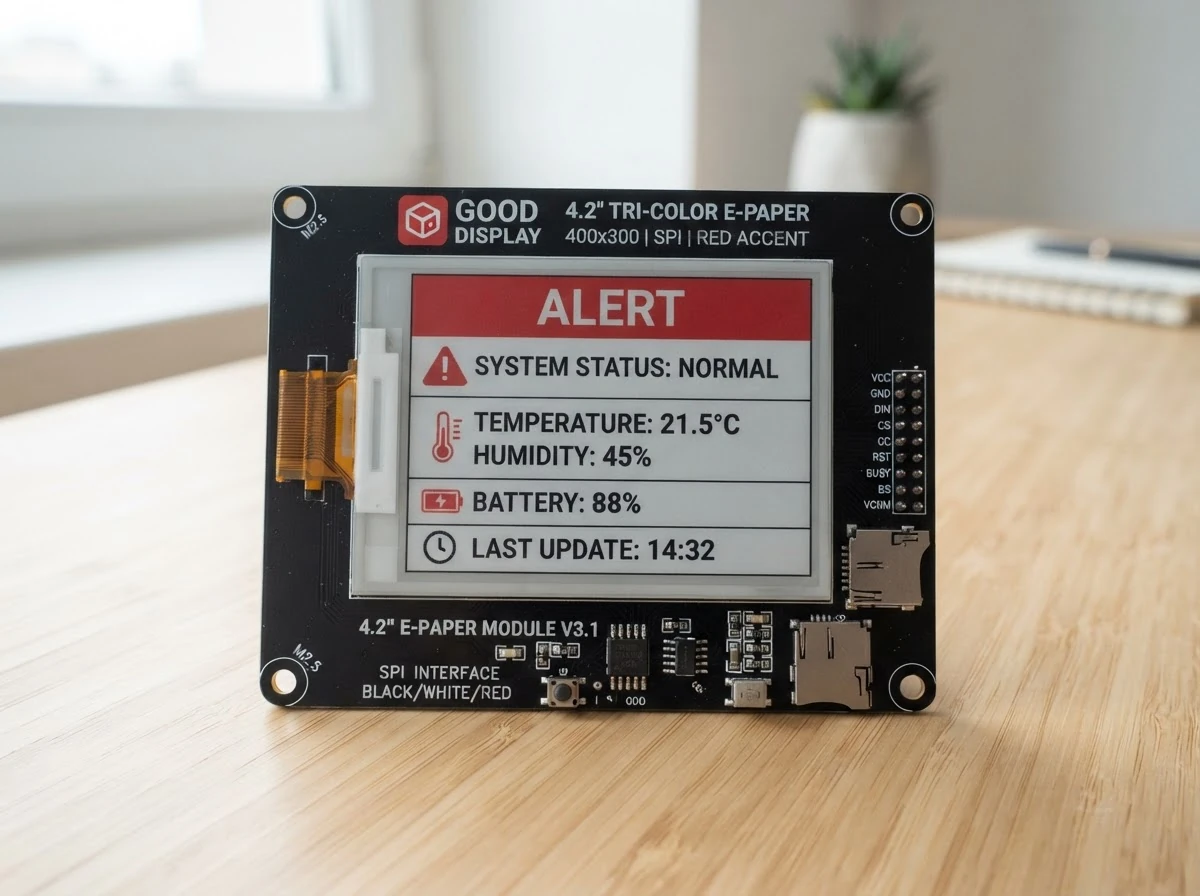

Available in black/white, black/white/red, and black/white/yellow
Partial refresh support for fast updates without full-screen flash

Request Samples

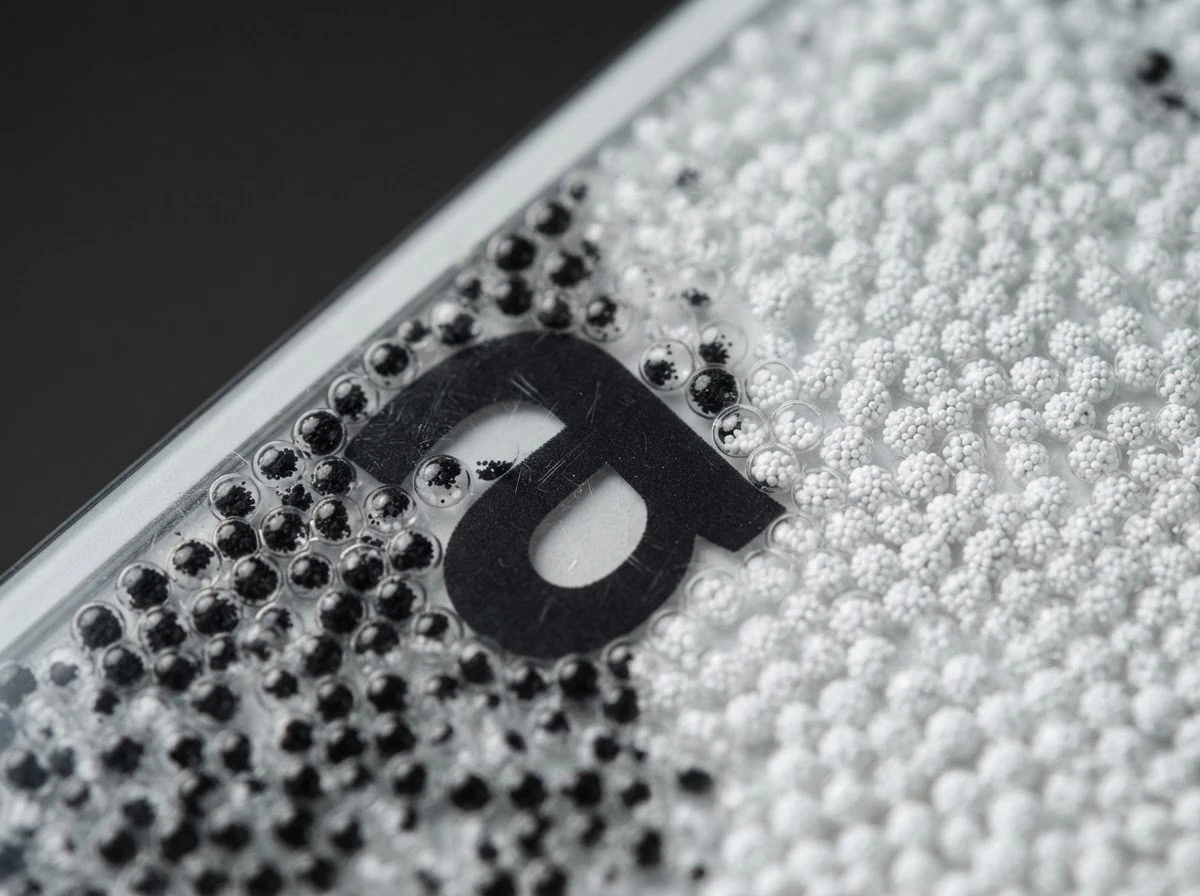

E-paper display microcapsule structure macro material science

Specifications

Technical Specifications

Display Technology	Electrophoretic Display (EPD / E-Ink)
Available Sizes	1.54", 2.13", 2.9", 4.2", 5.83", 7.5", 10.3", 13.3"

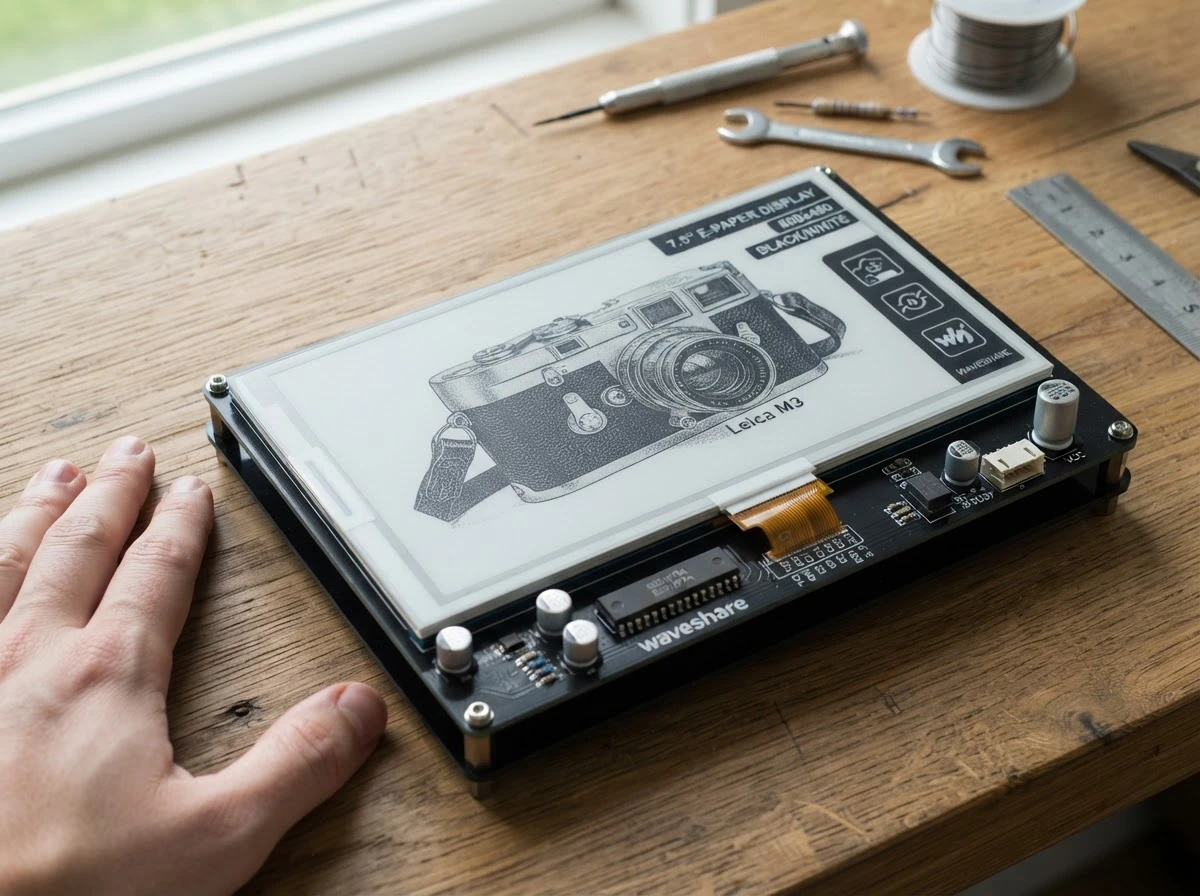

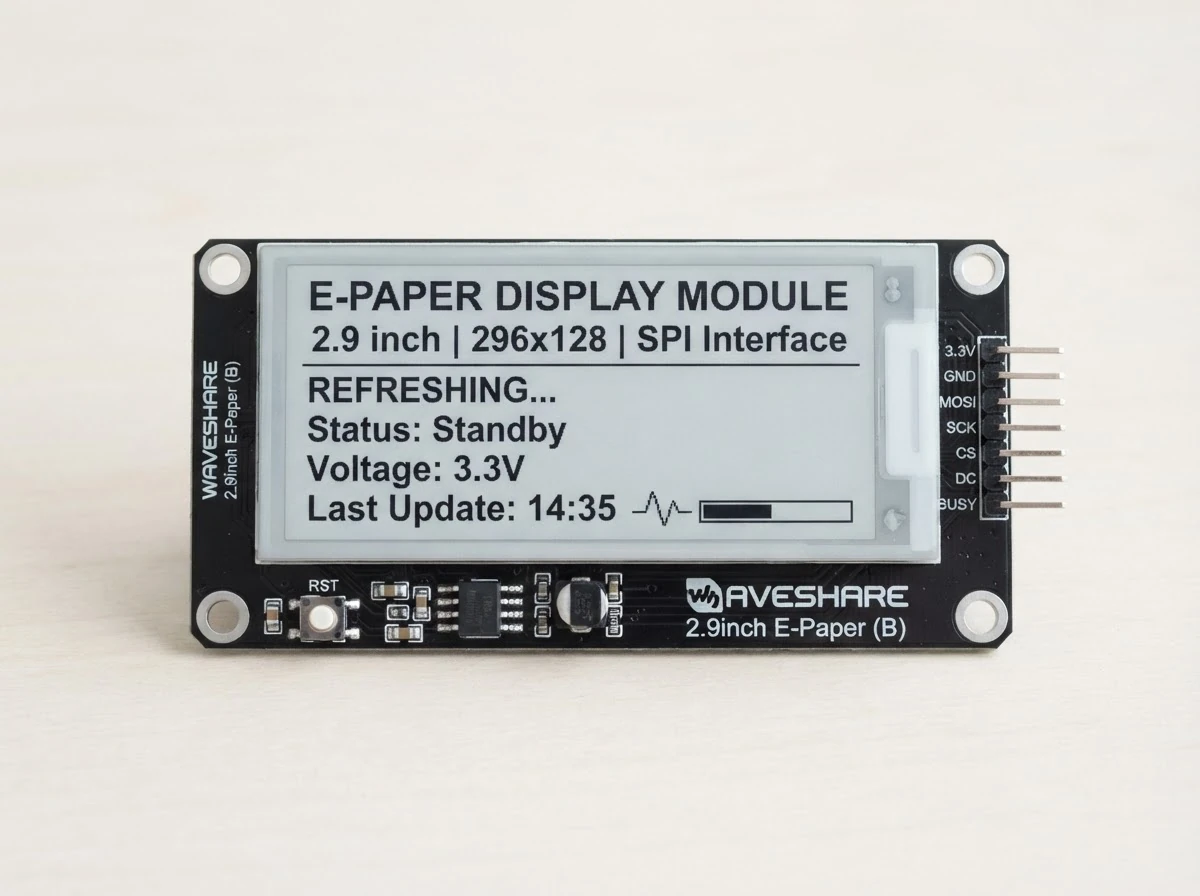

Resolutions	200×200 (1.54"), 296×128 (2.9"), 400×300 (4.2"), 800×480 (7.5")
Color Options	Black/White, Black/White/Red, Black/White/Yellow
Driver IC	SSD1608, SSD1675, SSD1680, UC8176, UC8179
Interface	3-wire / 4-wire SPI
Refresh Time	Full: 2-3s; Partial: 0.3-0.5s
Viewing Angle	>170° (near 180° hemispherical)
Contrast Ratio	>12:1 (typ.)
Power (Active)	~8mA during refresh (3.3V)
Power (Static)	0μW — image retained indefinitely without power
Operating Temperature	0°C to +50°C (standard); -15°C to +65°C (extended range)
